2023 Load Rite P-22/24T-4100TB2 - 1

The P-Series Load Rite pontoon trailer is the latest evolution in Load Rite's production of highly corrosion-resistant, supremely adjustable, and feature-filled trailers to fulfill the trailering needs of most any pontoon boat design currently available.

Each Load Rite pontoon trailer features a galvanized steel frame for superior anti-corrosion protection and ultimate service life. Steel is an excellent material for boat trailer construction but when unprotected, or even traditionally painted, and exposed to water steel tends to corrode and diminish in strength over time. Galvanization slows that process to a glacial crawl allowing a galvanized steel trailer to outlive a painted counterpart by many lifetimes.

Every Load Rite pontoon trailer is engineered with great features like galvanized torsion axle suspension(1) for a long-lasting, smooth and quite ride. Where brakes are required, Load Rite pontoon trailers come standard with smooth stopping disc brakes which also offer the benefits of being self-cleaning and adjusting. And standard LED lighting. This all means much less maintenance and more time on the water for every Load Rite pontoon trailer owner.

Some other standard features on all Load Rite pontoon models are: full-length, adjustable, carpeted bunks; winchstand with carpeted bunks, two slip-resistant steps, and a safety handrail(2); bead-balanced tires on galvanized wheels; manual winch and tongue jack.

Load Rite offers a wide range of options to elevate any P-Series Load Rite pontoon to unrivaled levels of service and convenience.

All of these features are backed by the industry leading Load Rite 2 + 3 Warranty.

Specifications subject to change without notice. Not responsible for publishing errors.

• Galvanized Pontoon Models: P-22/24T-4100TB1
• Capacity: 4,100 lb.
• Suspension: Torsion
• Front Deck Transom Maximum: 24 ft.
• Front Deck Transom Minimum: 21 ft. 6 in.
• Axles: 2
• Brakes: 1, 2

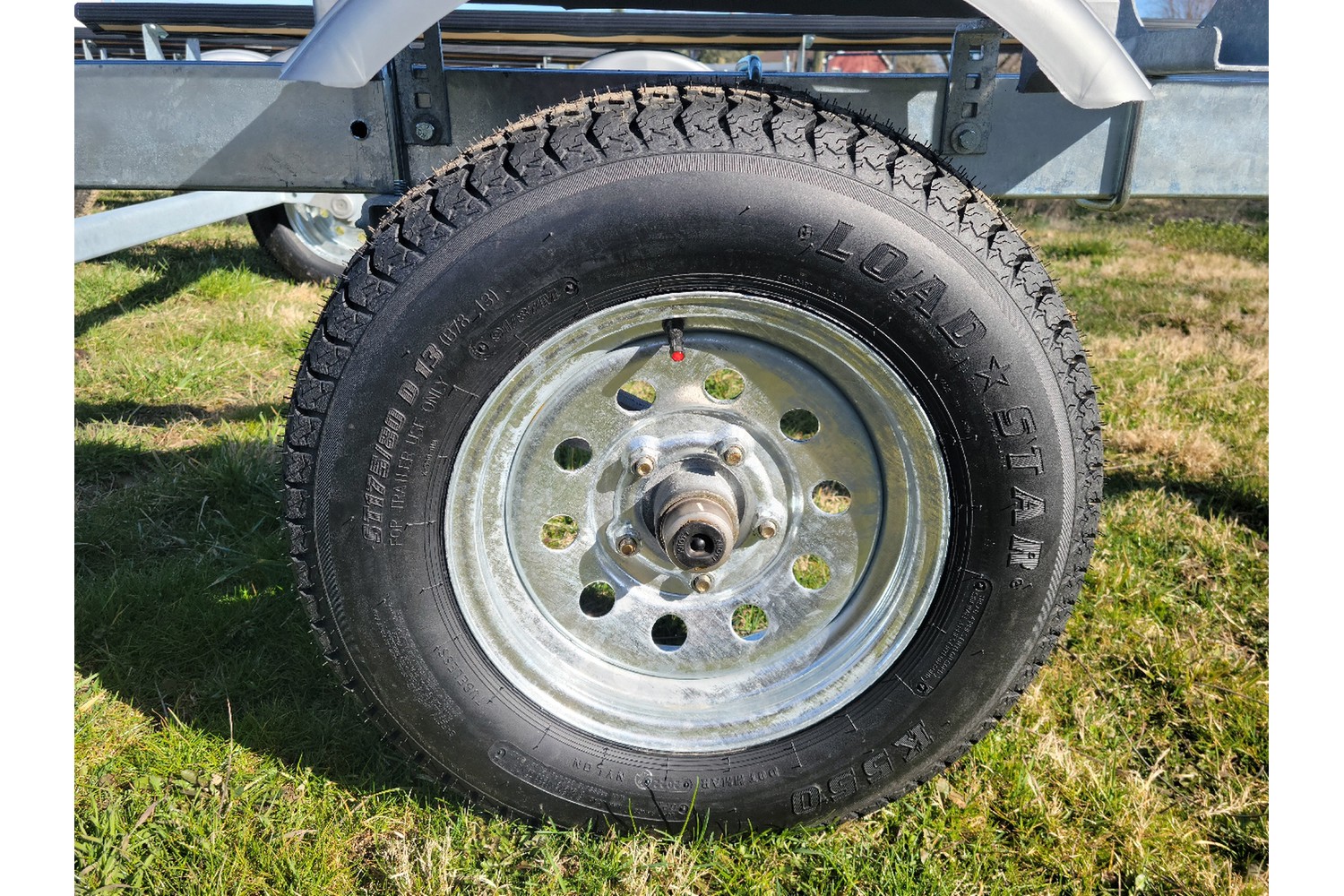

• Tire Size: ST175/13C
• 'toon Center Min / Max: 66.5 in. - 78 in.
• Overall Width: 98 in.
• Overall Length: 28 ft. 7 in.

• Galvanized Steel Frame
• Bias-Ply Tires
• Balanced Wheels 13" and Larger
• DOT Rated Tires and Lighting
• Pontoon torsion axle
• Leaf Spring Axles
• Greaseable Hubs
• Disc Brakes (Where Installed)
• Plastic Fenders

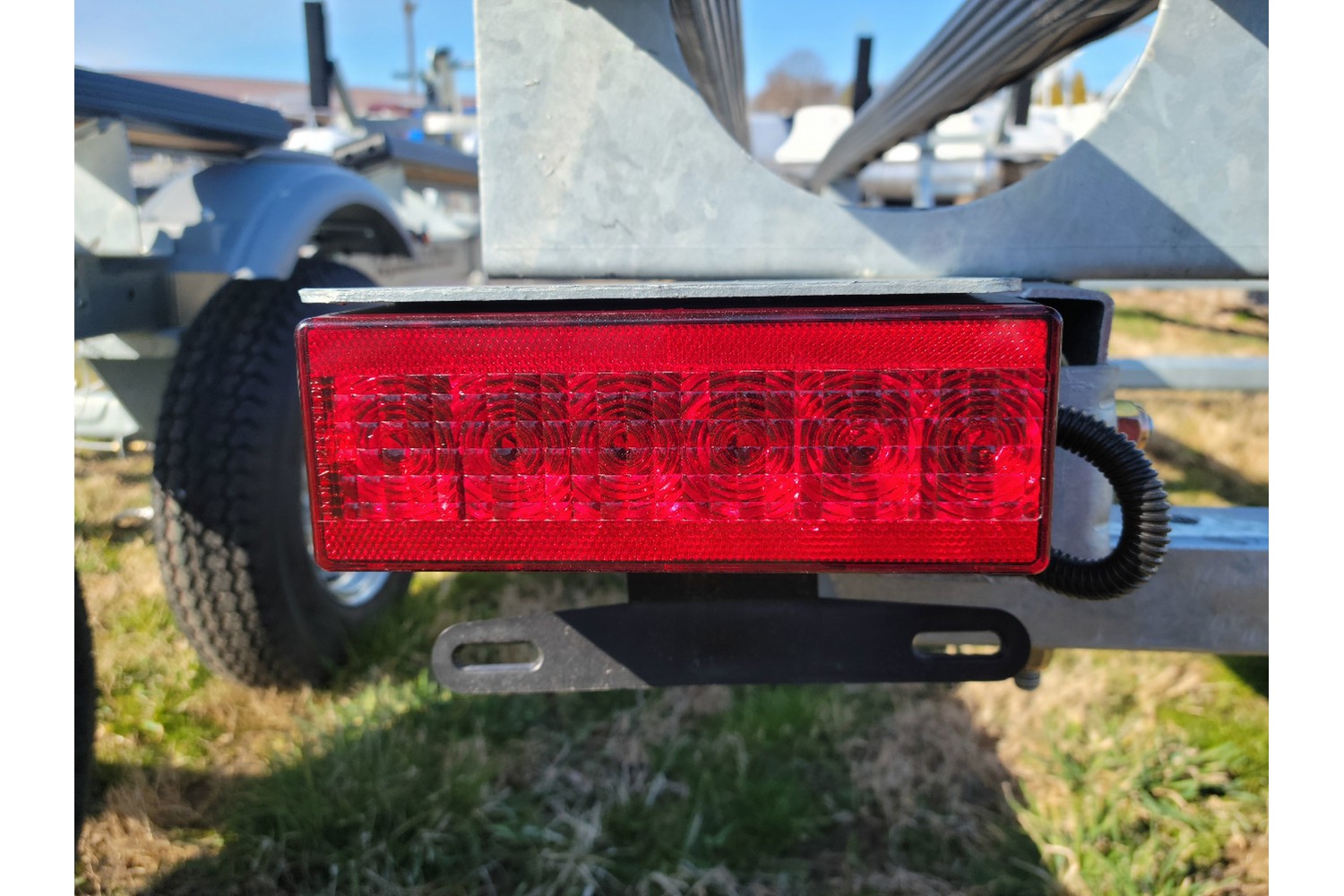

• LED Lighting
• Heat-Shrunk Sealed, Concealed Wiring
• Carpeted Wood Bunks
• Pontoon Standard Winch Stand

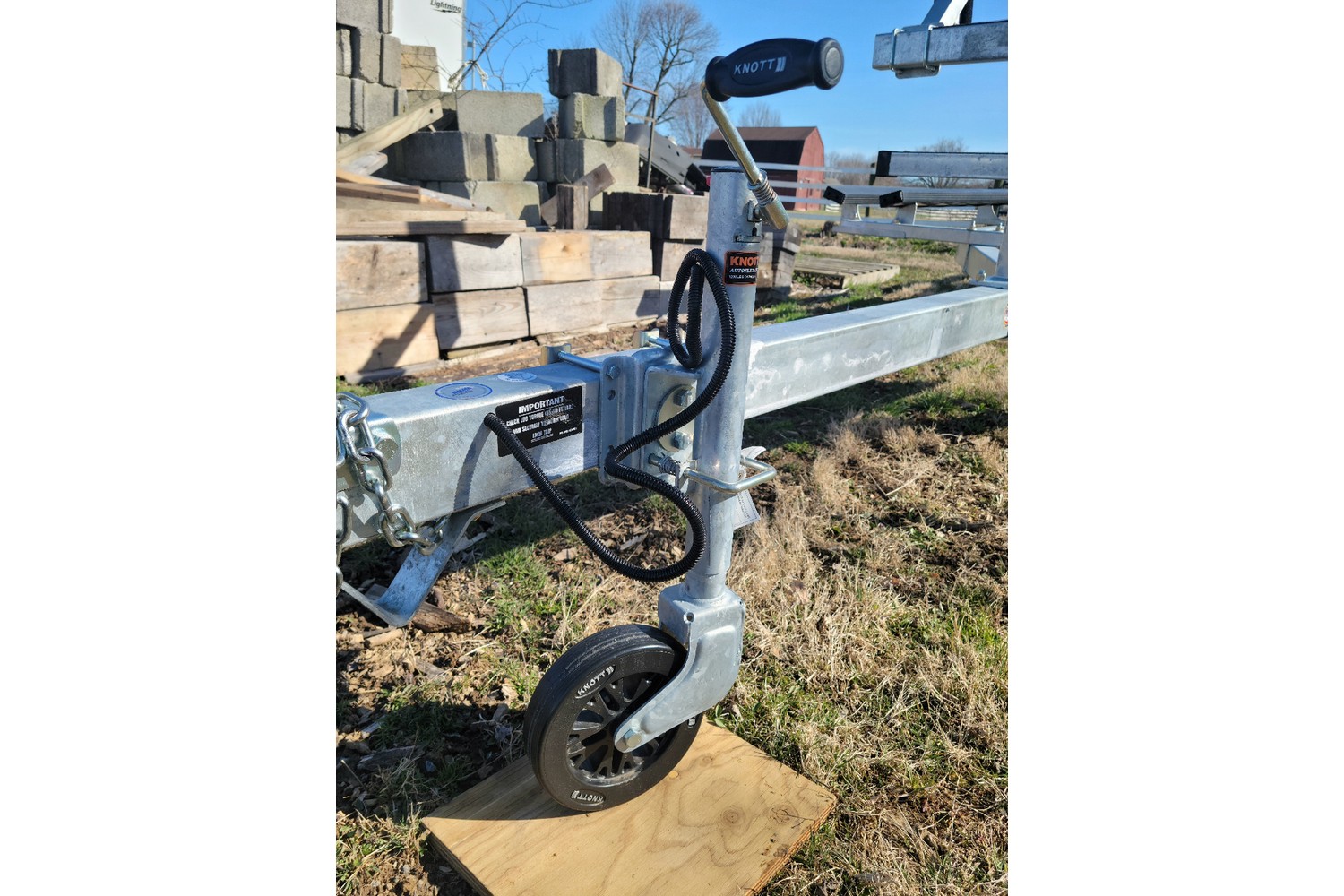

• Pontoon tongue jack
• Winch
• NMMA / NATM Certified
• 2 Plus 3 Years Coupler to Taillight Warranty
• KendaCare - LoadStar® Tire Roadside Assistance Program

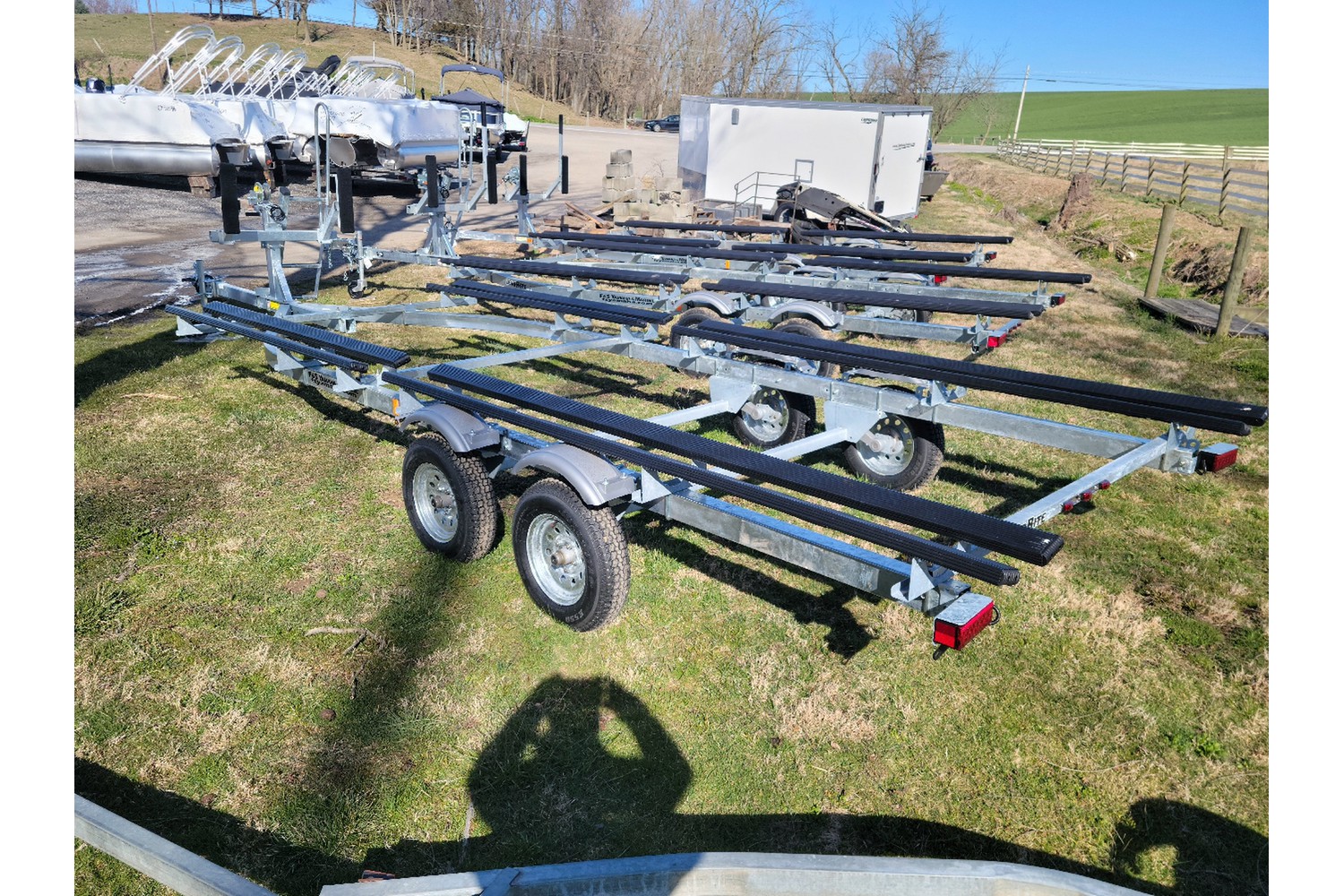

Image is for representation and may be shown with added features.
